Settings for "Bar" display format

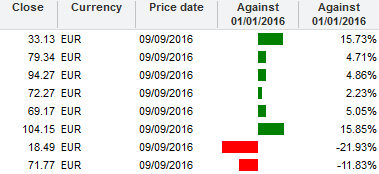

To change the display format of a column to "bars", select the DISPLAY, BARS command in the context menu of the column. For configuration, select the command PRESENTATION, FORMAT.
The "Display" dialog box appears, in which you can define the form of the display on the "Bar" tab.
The following settings are possible:
Command | Description |
|---|---|
Pruning | Activate this checkbox to crop the displayed bars. In this way, you often achieve a clearer display of the relevant bar sections, as the difference is emphasized more strongly. Simply try out this functionality using an example. |
Size | Set the height of the bars manually here or use the default value. To be able to change the height manually, the "Use default" checkbox must be deactivated. |
Set color for positive and negative | Here you can determine the bar colors for positive and negative values in the column. To do this, click on the "Color ..." button. A dialog box appears in which you can make the desired settings. You can find out more about this topic in the chapter Further basic functions. |
Confirm your settings with "OK" or select "Cancel" to discard the settings and close the dialog box.
