Title of the chart
In the upper part of the chart, the name of the security, the stock exchange and the time period shown are displayed by default. Some further information can be shown in the headline or via the securities profile.
- In the ribbon on the "Chart" tab, select the TITLE command in the menu of the "Edit chart elements" icon to change the settings for the heading.

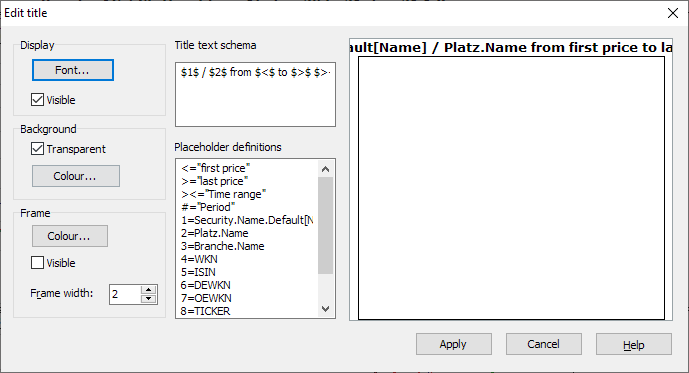

- In the "Edit title" dialog box, you can change the settings by clicking on the fields or checkboxes. You can immediately see the result of your changes in the right-hand window.
- Save all changes with "Apply".
Options in the "Edit title" dialog box
Field | Description |
|---|---|
Representation | Select the "Font" button to define the font and color of the heading. Use the "Visible" checkbox to select whether the title should be displayed or not. Use the "Status icons" checkbox to select whether or not the additional status icons should be displayed below the toolbar. |
Background | Opens a dialog box in which you can define the color of the background. |
Frame | Opens a dialog box in which you can define the color of the frame. |
Frame width | Select the desired width; it is given in points. |
Title text scheme | You can define dynamic headings here. The field below contains the definitions of the placeholders. Enter the placeholders between two "dollar signs" (e.g. $1$ for "Name", i.e. the name of the security, or $><$ for "Time range", i.e. to display the length of the chart section in days, weeks, months, $5$ for the ISIN, etc.). You can insert any characters or text in between (space, hyphen, etc.). |
