Create signal control for signal systems

Module "Advanced Technical Analysis"

Before you can create a signal system, at least one signal control must be created. Please also read the section Create signal control and limit folder.

Proceed as follows to create a new folder for managing your signal systems:

1. In the context menu of a folder - e.g. your desktop folder - select the command NEW, SIGNAL CONTROL.

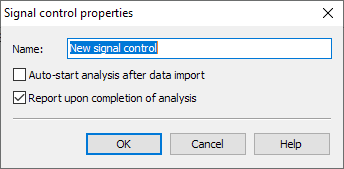

2. Enter a name in the "Signal control properties" dialog box that appears and specify whether a message should be issued at the end of the evaluation.
3. If you would like an evaluation of the systems under signal control after each data import, activate the corresponding checkbox.
4. Confirm your entries with "OK".
5. A signal control is then created in the Explorer with the name you entered in the "Name" field.
   You can also create signal systems under an existing signal folder. Signal folders (also called "signal control") are symbolized by a bell.
6. To create a signal system underneath, select the command NEW, SIGNAL SYSTEM in the context menu.
   You can find a detailed description of how to create the signal system in the chapter Define new signaling system.
