Fibonacci arcs

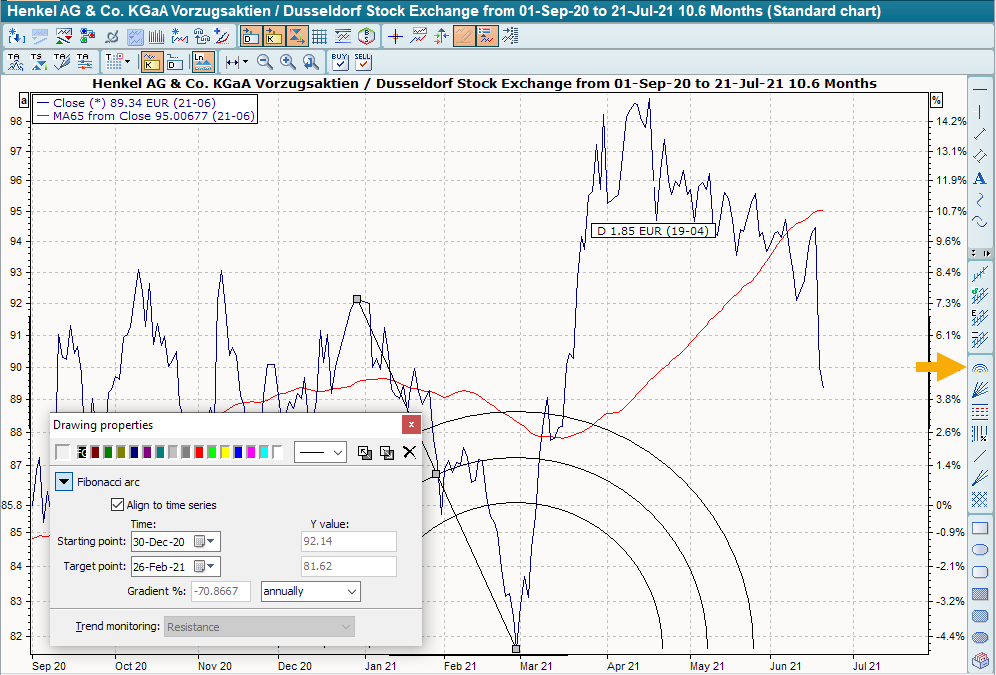

For the Fibonacci arcs, a trend line is drawn between two extreme points in the price development. Three arcs are then calculated, the center of which is the second extreme point. The arcs intersect this trend line at the Fibonacci levels of 38.2 %, 50.0 % and 61.8 %.

1.

   Click on the "Fibonacci arc" icon.
2. Draw the Fibonacci arcs by drawing a trend line between two extreme points in the price development.
   The three arcs described above are drawn.
3. You can use the gray markings to move the line if necessary.

You can enter the exact start or end point in the "Character properties" dialog box. You can also see the percentage increase in the selected interval (annually, monthly or daily).

The trend line is then removed again.
